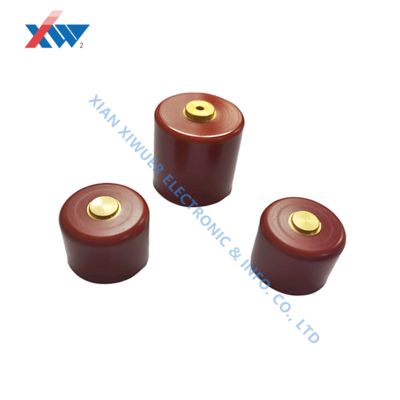

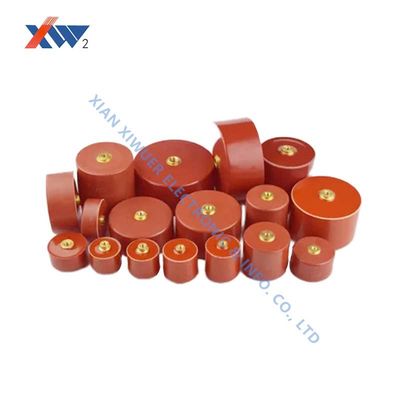

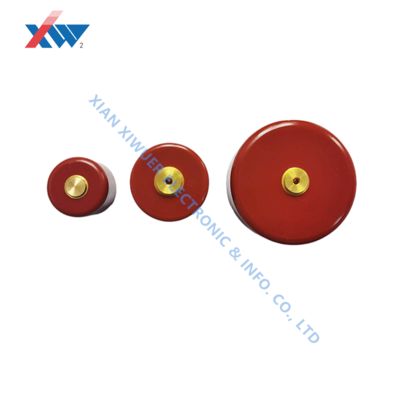

Customized High Voltage Doorknob Capacitor for Non-destructive Testing with Extreme Space Requirements and Functional Integration

  • Customized High Voltage Doorknob Capacitor for Non-destructive Testing with Extreme Space Requirements and Functional Integration
  • Customized High Voltage Doorknob Capacitor for Non-destructive Testing with Extreme Space Requirements and Functional Integration
  • Customized High Voltage Doorknob Capacitor for Non-destructive Testing with Extreme Space Requirements and Functional Integration
Herkunftsort XIAN, SHANNXI CHINA
Markenname XIWUER
Zertifizierung ISO9001,ISO14001,OHSAS18001
Modellnummer CT8-1-30kV-2700pF
Min Bestellmenge 1 Stück
Preis Verhandlungsfähig
Verpackung Informationen Karton
Lieferzeit 10-15 Tage
Zahlungsbedingungen L/c, t/t
Versorgungsmaterial-Fähigkeit 4.000.000 PC ein Jahr

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Hervorheben

Non-destructive Testing High Voltage Doorknob Capacitor

,

Extreme Space Requirements HV Doorknob Capacitor

,

Functional Integration Custom High Voltage Capacitor
Hinterlass eine Nachricht
Produkt-Beschreibung
Custom High-Voltage Capacitor Solutions for Nondestructive Testing

Specialized high-voltage capacitor solutions designed for unique nondestructive testing applications where standard components may not meet requirements.

Standard Product Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
When Standard Products Aren't Enough

Cutting-edge nondestructive testing equipment often requires solutions beyond standard offerings, particularly for:

  • Exceptionally high voltages (>300kV)
  • Extremely limited installation space
  • Complex multi-stage capacitor voltage divider networks
Customization Capabilities

Our engineering team and flexible production lines provide comprehensive customization services from concept to finished product:

Electrical Parameter Customization
  • Voltage Customization: Rated voltages from several kilovolts to 500kV+
  • Capacitance Customization: Precise tailoring for filtering or energy storage requirements
  • Low Inductance Design: Optimized internal structure for high-frequency pulse applications
Physical Structure Customization
  • Dimensions & Mounting: Custom shapes, lengths, and terminal configurations
  • Encapsulation Hardening: Specialized packaging for extreme environments (high altitude, humidity)
System-Level Solutions
  • Capacitor Voltage Divider Modules: High-precision, high-stability voltage dividers
  • Pre-Assembled Capacitor Stacks: Plug-and-play multi-capacitor series/parallel configurations

We believe the best capacitor is one that integrates seamlessly into your system design. Contact us to develop the perfect component for your unique nondestructive testing application.
