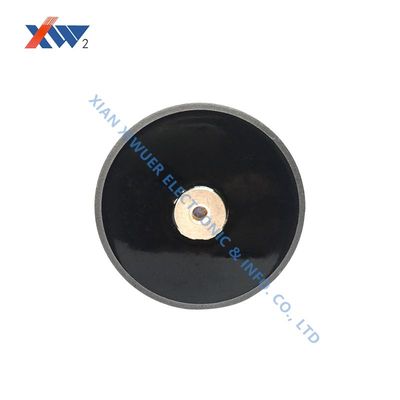

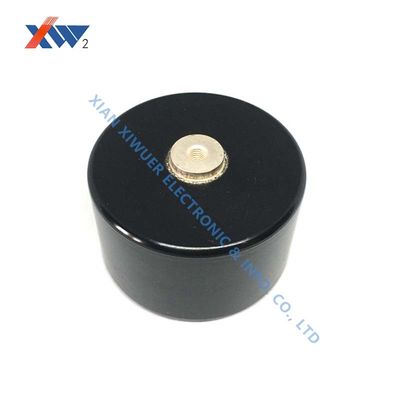

The Power of RF Systems: The Critical Role of High-Voltage Doorknob Capacitors in NMR Probes and Power Amplifiers

The Power of RF Systems: The Critical Role of High-Voltage Doorknob Capacitors in NMR Probes and Power Amplifiers

The radio frequency system of a nuclear magnetic resonance instrument is a key component for exciting atomic nuclei and receiving their weak signals. Its performance directly determines the instrument's sensitivity and accuracy. Both the high-power radio frequency pulses required by the transmitting coil and the low-noise amplifier at the front end of the receiving channel require a stable, efficient high-voltage power supply. High-voltage doorknob capacitors play a key role in pulse shaping and energy transfer.

Drawing:


Parameters:

Solution: Ensuring Energy for High-Fidelity RF Pulses

High-voltage doorknob capacitors play a critical role in the anode modulation circuit or DC energy storage of RF power amplifiers:
Pulse Energy Sink: During RF pulse transmission, the amplifier requires a high instantaneous current. Our capacitors act as efficient instantaneous energy reservoirs, providing high peak currents to ensure a steep leading edge and a flat top of the RF pulse.

Efficient Filtering: Their low ESR/ESL characteristics ensure extremely low high-frequency impedance on the power bus, effectively suppressing interference from power stage switching noise on the RF signal and guaranteeing a pure output waveform.

Non-Magnetic Design:

Ensuring the Performance Bottom Line of Ultra-High-Field Spectrometers
In ultra-high-field NMR instruments, any slight paramagnetic or ferromagnetic impurities can severely disrupt the uniformity of the main magnetic field. Our high-voltage doorknob capacitors are optionally constructed of completely non-magnetic materials (such as specialized ceramic dielectrics, non-magnetic epoxy resins, and silver-plated terminals) to ensure they introduce no magnetic field interference, ensuring the instrument achieves its designed resolution.
