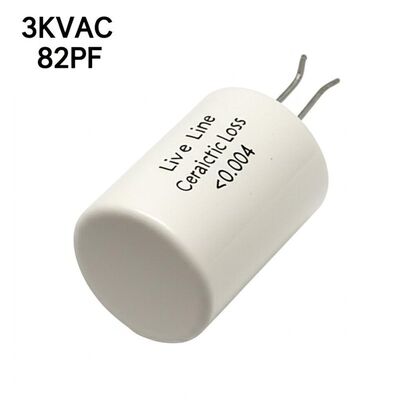

3KVAC 82PF Live Line Ceramic Capacitor with Dielectric Loss < 0.004 for High Voltage Switch Gear

  • 3KVAC 82PF Live Line Ceramic Capacitor with Dielectric Loss < 0.004 for High Voltage Switch Gear
Herkunftsort XIAN, CHINA
Markenname XIWUER
Zertifizierung ISO9001,ISO14001,ISO45001
Modellnummer CT811-3kVAC-82pF
Min Bestellmenge 1 Stück
Preis Verhandlungsfähig
Verpackung Informationen Karton
Lieferzeit 5-7 Tage
Zahlungsbedingungen L/C, T/T
Versorgungsmaterial-Fähigkeit 8.000.000 ein Jahr

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Nominal working voltage 3kV Insulation resistance ≥10000MΩ
1.2 / 50µs lightning impulse 40 KV(peak)
Hervorheben

3KVAC Live Line Ceramic Capacitor

,

82PF High Voltage Ceramic Capacitor

,

Dielectric Loss < 0.004 HV Ceramic Capacitor
Hinterlass eine Nachricht
Produkt-Beschreibung
High Voltage Switch Gear Live Line Ceramic Capacitor 3KVAC 82PF
High voltage switch gear live line ceramic capacitor designed for industrial electrical applications.
Application
Primarily used for voltage divider capacitors in charged display systems. The capacitor's capacity can be adjusted to modify the voltage divider ratio. Must be stored in the insulator when not in use.
Features
  • Miniature and non-polar design
  • Excellent charge and discharge efficiency
  • Low dissipation with superior insulation and stability
  • Available in various series and assembly methods
Technical Parameters
  • Dielectric loss: < 0.004 at 25°C
  • Partial Discharge: ≤ 10 PC
  • Insulation resistance: ≥10000MΩ
  • 1.2 / 50µs lightning impulse: 40 KV(peak)
Specifications
Rated Voltage Withstand Voltage In Oil Lightning impulse KV 1.2/50 μs D L1 L2 Screw
3KVAC 80PF 30KVAC/1min 40 13±0.5 22±1 42±1 M5*6
3KVAC 180PF 23±1 43±1
3KVAC 82PF 15±1 25±1 45±1
6KVAC 40PF 36KVAC/1min 60 13±1 29±1 49±2
6KVAC 135PF 15±1
6KVAC 150PF 16.5±1 32±2 52±2
12KVAC 20PF 50KVAC/1min 75 18±1 35.5±2 55±2
12KVAC 40PF 38±2 58±2
12KVAC 60PF 36±2 56±2
12KVAC 100PF 36±2 56±2
12KVAC 150PF 15±0.5 40±2 60±2
12KVAC 200PF 18±1 42±2 62±2
15KVAC 75PF 60KVAC/1min 105 16.5±1 38±2 58±2
15KVAC 250PF
15KVAC 500PF 25±1 58±2 78±2
24KVAC 15PF 90KVAC/1min 125 15±0.5 47±2 67±2
24KVAC 80PF 16.5±1 50±2 70±2
24KVAC 250PF 20±1 55±2 75±2
35KVAC 10PF 110KVAC/1min 185 17±1 60±2 80±2
35KVAC 45PF 17±1 65±2 85±2
Company Overview

Xian Xiwuer Electronic & Info. Co., Ltd. is a leading manufacturer of electronic components located in Xi'an, China. With 2300 employees including 580 technicians and 135 engineers, the company operates from a 4000㎡ facility with total assets of 315 million RMB Yuan.

As China's largest producer of Varistors, SPDs (Surge Protective Devices), and HV Ceramic Capacitors, our main product lines include:

  • Varistors & SPD
  • HV Ceramic Capacitor
  • Capacitive Voltage Divider
  • Thermistor

Our production and inspection equipment is imported from Japan, America, Belgium, and Switzerland. With annual production capacities of 5 million and 150 million units for our leading products respectively, we hold approximately 10% and 30% of the Chinese market share.

Our products have earned international recognition and are exported to countries including Japan, USA, Hong Kong, Korea, Spain, and India. We maintain certifications including CCEE, UL, VDE, TUV, ISO9001, and ISO18000, demonstrating our commitment to quality and continuous improvement.
